What Is an SSD Enclosure? A Simple Guide for Mac Users

What does an SSD enclosure do?

An SSD (solid state drive) stores files on memory chips instead of a spinning disk, so it is fast, silent and hard to break. Most SSDs are made to sit inside a computer. An SSD enclosure gives that drive a case, a controller chip and a USB-C or Thunderbolt port, so you can use it as an external drive. People use one to:

• Back up a Mac with Time Machine, quickly and quietly.
• Carry big files: photo libraries, 4K video projects, game folders.
• Edit straight from the drive, if the enclosure is fast enough (see the speed table below).
• Reuse an old SSD left over from a PC or laptop upgrade.
• Add storage to a Mac without paying for a bigger built-in drive.

NVMe or SATA: which SSD do you have?

There are two kinds of SSD, and the enclosure has to match yours.

• SATA SSDs are the older kind. They come as a 2.5-inch drive or as a thin M.2 stick, and they top out at about 550 MB/s, whatever enclosure you use.
• NVMe SSDs are the fast kind. They are always M.2 sticks and talk to the computer over PCIe, which makes them several times faster than SATA.

To check yours, look at the label: it will say NVMe or PCIe if it is NVMe. An M.2 NVMe drive usually has one notch in its gold connector; an M.2 SATA drive usually has two.

Our Satechi enclosures are NVMe only. They will not work with an M.2 SATA drive or a 2.5-inch drive; for those you need a SATA enclosure.

How fast is an SSD enclosure?

The speed you get is set by the slowest of three things: the SSD, the enclosure and the port on your Mac. These are typical real-world speeds with a good NVMe drive, and how long a 100 GB copy takes:

For backups and moving files, 10 Gbps is plenty. If you want to edit video or run a photo library straight from the drive, go for USB4 or Thunderbolt. A USB4 enclosure also works on a Thunderbolt 5 Mac, at USB4 speed.

Which size fits? M.2 2230, 2242, 2260 and 2280

M.2 drives are named after their size in millimetres: the first two digits are the width, the last two the length. Check the size printed on your drive, then check that the enclosure lists it.

Which SSD enclosure does my Mac need?

Macs with Apple silicon have their storage built in, so you can't take the drive out and put it in an enclosure. Instead, you buy an M.2 NVMe SSD and an enclosure for it. Every Apple silicon Mac has Thunderbolt or USB4 ports, so a 40 Gbps enclosure runs at full speed. On a Mac mini with M4, use the ports on the back: the two on the front are 10 Gbps.

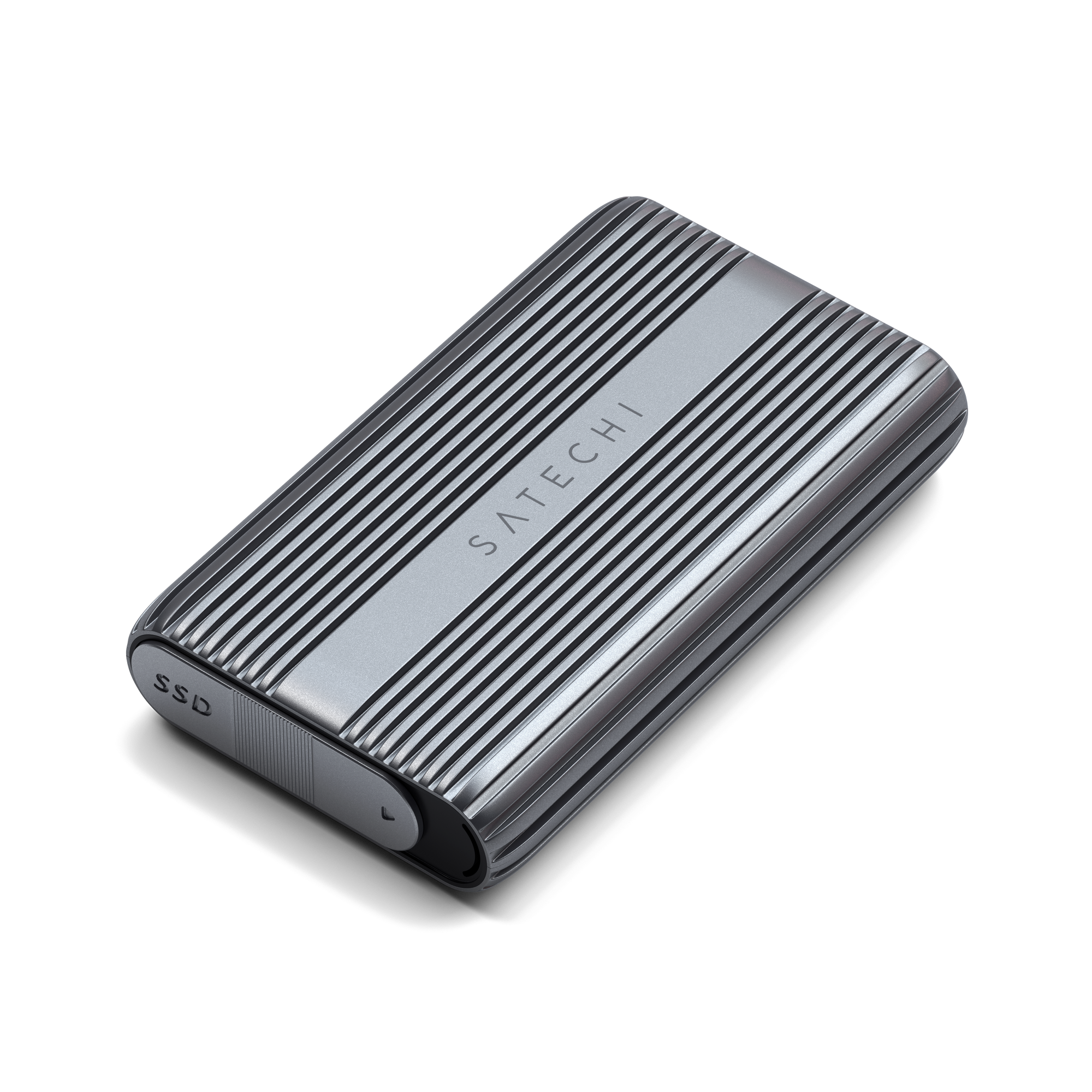

• Small and simple: the Satechi mini NVMe SSD Enclosure takes a 2230 drive, weighs 35 g and runs at 10 Gbps. Good for backups and carrying files.
• Fastest for the money: the Satechi USB4 NVMe SSD Pro takes 2242, 2260 and 2280 drives up to 4 TB and reaches up to 3,840 MB/s over USB4 or Thunderbolt.
• Made to match your Mac: the Satechi USB4 Slim NVMe SSD Enclosure has an aluminium body with the same 12.7 cm footprint as the M4 Mac mini, takes 2230 to 2280 drives up to 8 TB, and runs at 40 Gbps.
• For a Mac mini or Mac Studio desk: the Satechi stand and hub for Mac mini and Mac Studio sits under your Mac and adds front ports plus a hidden M.2 slot. For a full Thunderbolt 5 setup, the Satechi Thunderbolt 5 CubeDock combines a dock with an M.2 slot for drives up to 8 TB.

See all our SSD enclosures for Mac.

How do you set up an SSD enclosure on a Mac?

It takes about five minutes and a small screwdriver, which most enclosures include.

1. Check your drive: it should be an M.2 NVMe SSD in a size the enclosure supports. Drives with a heatsink on top usually don't fit.
2. Fit the SSD: open the enclosure, slide the drive into the M.2 slot at a slight angle, press it flat and fix it with the screw or latch. Put the thermal pad on top if one is included.
3. Connect it: close the case and plug it into a Thunderbolt or USB4 port with the cable that came with it. Some cheaper cables only carry 10 Gbps.
4. Format a new drive: open Disk Utility, choose View > Show All Devices, select the drive, then click Erase. Pick APFS if you only use Macs, or exFAT to share it with Windows, with the GUID Partition Map scheme. This deletes everything on the drive.
5. Use it: drag files across, or pick it as your backup disk in System Settings > General > Time Machine. Always eject it before you unplug it.

SSD enclosure FAQ

Are SSD enclosures worth it?

Yes, if you want fast external storage you can upgrade later. An SSD and an enclosure often cost less than a ready-made portable SSD with the same speed, you choose the capacity, and you can swap in a bigger drive later. It is also the easiest way to reuse an old SSD.

Do SSD enclosures get hot?

NVMe drives get warm during long transfers. A metal case and a thermal pad between the drive and the case carry the heat away. If a drive gets very hot it slows down for a moment to protect itself, which is normal.

Can I use an SSD enclosure with an iPad or iPhone?

Yes. iPads with USB-C and iPhone 15 or later can open, copy and save files on an external SSD in the Files app. Format the drive as APFS or exFAT so both your Mac and your iPad or iPhone can read it.

Can I put my Mac's internal SSD in an enclosure?

Not on a Mac with Apple silicon: the storage is built into the Mac. To add storage, buy an M.2 NVMe SSD and put that in the enclosure instead.

An SSD enclosure is one of the simplest upgrades for a Mac: a few minutes of setup gives you fast, quiet storage you can take anywhere. Pick the size that fits your drive and the speed that fits your work, and browse our SSD enclosures for Mac.
